Graphite Filled PTFE Rod

Name: Graphite Filled PTFE Rod
Brand: SANGHVI TECHNO PRODUCTS
Price: 950 INR
Availability: InStock

950 INR/Kilograms

Get a Price/Quote

Product Details:

Type Graphite Filled PTFE Rod
Material PTFE (Polytetrafluoroethylene) with Graphite
Working Temperature -200C to +260C
Density 2.16 Gram per cubic centimeter(g/cm3)
Corrosion Protection Excellent chemical resistance
Tensile Strength 10-20 MPa
Thickness As per specification requirement
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Graphite Filled PTFE Rod Price And Quantity

Minimum Order Quantity 10 , , Kilograms
Price 950 INR/Kilograms

Reusable Yes
Application Wear-resistant bushings, gaskets, seals, and electrical insulation
Friction Coefficient Low, self-lubricating
Thermal Conductivity Higher than virgin PTFE
Surface Finish Smooth
Water Absorption < 0.01%
Hardness 55-65 Shore D
Compressive Strength 15-30 MPa
Color Black to Dark Grey
Odor Odorless
Shape Rod/Cylindrical
Non-Toxic Yes
Standards ASTM, DIN, or equivalent industry standards
Electrical Properties Good insulation with reduced dielectric strength

Graphite Filled PTFE Rod Product Specifications

Size Dia 10 mm to 200 mm
Density 2.16 Gram per cubic centimeter(g/cm3)
Length 300 mm, 600 mm, or customized
Tensile Strength 10-20 MPa
Corrosion Protection Excellent chemical resistance
Melting Point 327C
Type Graphite Filled PTFE Rod
Material PTFE (Polytetrafluoroethylene) with Graphite
Width Custom/As per requirement
Thickness As per specification requirement
Working Temperature -200C to +260C

Reusable Yes
Application Wear-resistant bushings, gaskets, seals, and electrical insulation
Friction Coefficient Low, self-lubricating
Thermal Conductivity Higher than virgin PTFE
Surface Finish Smooth
Water Absorption < 0.01%
Hardness 55-65 Shore D
Compressive Strength 15-30 MPa
Color Black to Dark Grey
Odor Odorless
Shape Rod/Cylindrical
Non-Toxic Yes
Standards ASTM, DIN, or equivalent industry standards
Electrical Properties Good insulation with reduced dielectric strength

Graphite Filled PTFE Rod Trade Information

Supply Ability 10 , , Kilograms Per Day
Delivery Time 1-2 Week
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Main Domestic Market All India

Product Description

For number of industrial purposes a wide range of Graphite Filled PTFE Rod are used. As per the name of the offered product, it can be said that optimum grade of graphite as raw material is filled inside the PTFE (Polytetrafluoroethylene) rod by using the advanced technique. This round shape Graphite Filled Polytetrafluoroethylene Rod is offered in the color grade of graphite black. Offered STP brand can withstand 250 degree temperature. This comes in the standard diameter and length of 16 mm to 400 mm and 300 mm respectively. At highly economical market rates this Polytetrafluoroethylene rod can be accessed.

Features:

It has excellent wear properties
It is chemically inert in nature
It is known for high load carrying capability
It can withstand 250 degree of temperature

Technical Details:

Color : Graphite Black
Temperature (deg. Celsius) : 250 degree
Standard Diameter : 16 mm to 400 mm
Standard Length : 300 mm
Shape : Round
Brand : STP

Enhanced Wear and Chemical Resistance

Graphite filled PTFE rods are engineered to endure challenging environments, providing superior wear resistance compared to standard PTFE. Their outstanding chemical inertness and smooth surface finish ensure reliability in harsh settings, making them suitable for wear-prone and corrosive industrial applications such as bushings and seals.

Outstanding Dimensional Stability and Customization

With compressive strengths between 15-30 MPa and customizable dimensions, these rods serve versatile design requirements. They maintain consistent performance across diameters from 10 mm to 200 mm and lengths up to 600 mm, ensuring a precise fit for various engineering and electrical insulation needs.

FAQs of Graphite Filled PTFE Rod:

Q: How are graphite filled PTFE rods used in industrial applications?

A: Graphite filled PTFE rods are commonly used to manufacture wear-resistant bushings, gaskets, seals, and components for electrical insulation. Their low friction coefficient and self-lubricating nature make them particularly suitable for moving parts and equipment exposed to rigorous conditions.

Q: What are the main benefits of using graphite filled PTFE rods over virgin PTFE?

A: Graphite filled PTFE rods offer increased wear resistance, higher thermal conductivity, and improved dimensional stability while retaining PTFEs inherent chemical resistance and low water absorption. This makes them ideal for applications demanding prolonged service life and dependable performance.

Q: When should I choose graphite filled PTFE rods instead of standard PTFE?

A: You should opt for graphite filled PTFE rods when your application requires greater wear resistance, improved heat dissipation, and enhanced mechanical strength, such as in dynamic sealing, sliding, or bearing environments that see repeated mechanical stress.

Q: Where can graphite filled PTFE rods be installed?

A: These rods are used in a range of industrial settings, including chemical plants, electrical equipment, automotive assemblies, and manufacturing machinery, especially where both chemical exposure and frictional wear are factors.

Q: What is the typical process for fabricating parts from graphite filled PTFE rods?

A: Parts are usually fabricated by machining the rods according to specified dimensions. The rods can be easily cut, drilled, or milled due to their machinability, allowing for precise customization to suit different application needs.

Q: Are graphite filled PTFE rods reusable, and do they meet safety standards?

A: Yes, these rods are reusable and meet industry standards such as ASTM and DIN. They are non-toxic, odorless, and safe for use in various environments, ensuring reliability and compliance with quality requirements.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'PTFE Rods' category

Industrial Moulded PTFE Rods Price : 800 INR/Kilograms Minimum Order Quantity : 50 Material : 100% Virgin Polytetrafluoroethylene (PTFE) Working Temperature : 180C to +260C Density : 2.2 Gram per cubic centimeter(g/cm3) Length : 300 mm, 600 mm, or as required Tensile Strength : 15 30 MPa Corrosion Protection : Other, Excellent chemical resistance Width : Customizable as per requirement Type : Industrial Moulded PTFE Rod Thickness : As per diameter (12 mm to 300 mm) Size : Available from 12 mm to 300 mm diameter Melting Point : 327C

Send Inquiry

Carbon Filled PTFE Rod Price : 950 INR/Kilograms Minimum Order Quantity : 10 Material : Carbon Filled PTFE Working Temperature : 180C to +260C Density : 2.20 Gram per cubic centimeter(g/cm3) Length : 100 mm to 1000 mm Tensile Strength : 10 15 MPa Corrosion Protection : Other, Excellent Width : Customizable Type : Carbon Filled PTFE Rod Thickness : Custom as per order Size : 8 mm to 200 mm Diameter Melting Point : 327C

Send Inquiry

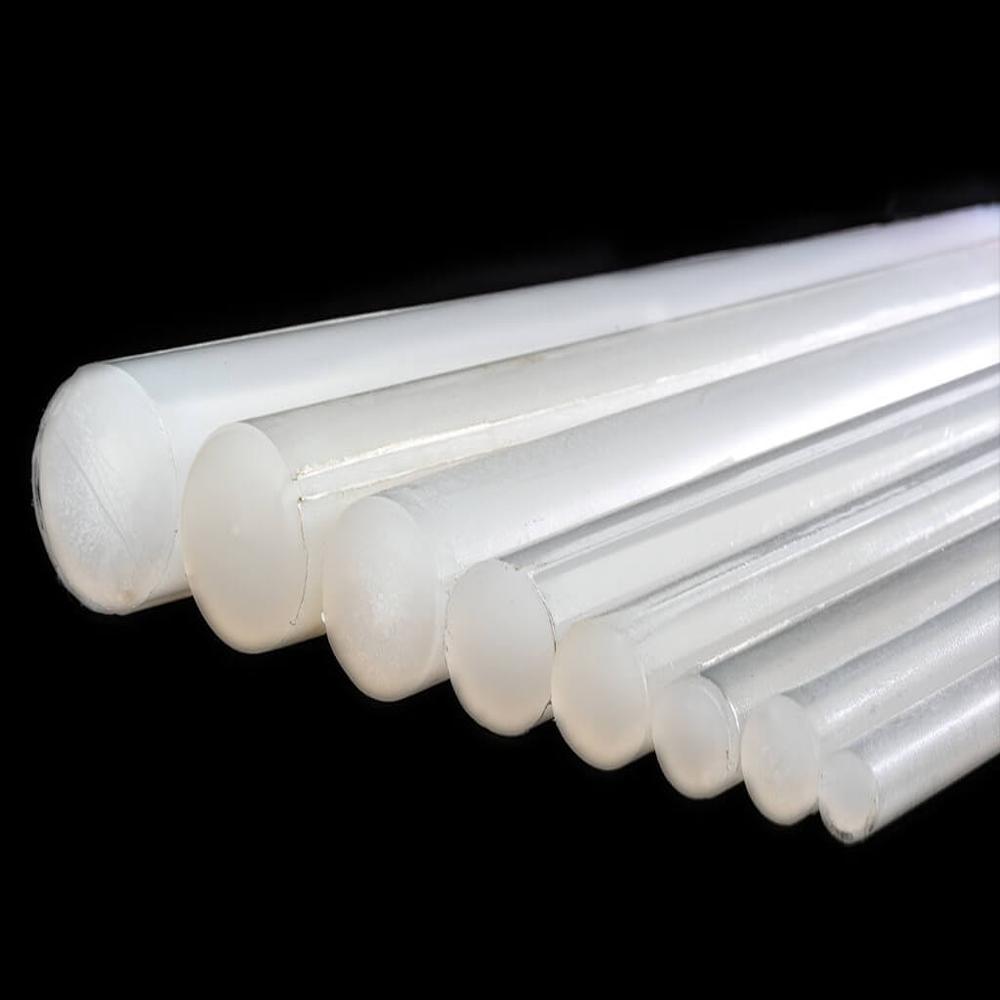

PCTFE ROD Price : 1000.0 INR/Number Minimum Order Quantity : 10 Material : PCTFE Working Temperature : 120 Celsius (oC) Density : 2.12 Gram per cubic centimeter(g/cm3) Length : 1000 Millimeter (mm) Tensile Strength : 95 Megapascals (MPa ) Corrosion Protection : Yes
